If you’re in the business of precision machining, then you know the importance of having the right tools for the job. And one tool that every machinist should have in their arsenal is the Aloris tool post.
In this comprehensive guide, we’ll take a deep dive into everything you need to know about the Aloris tool post. From its history and design to its advantages and disadvantages, we’ve got you covered. So let’s get started!

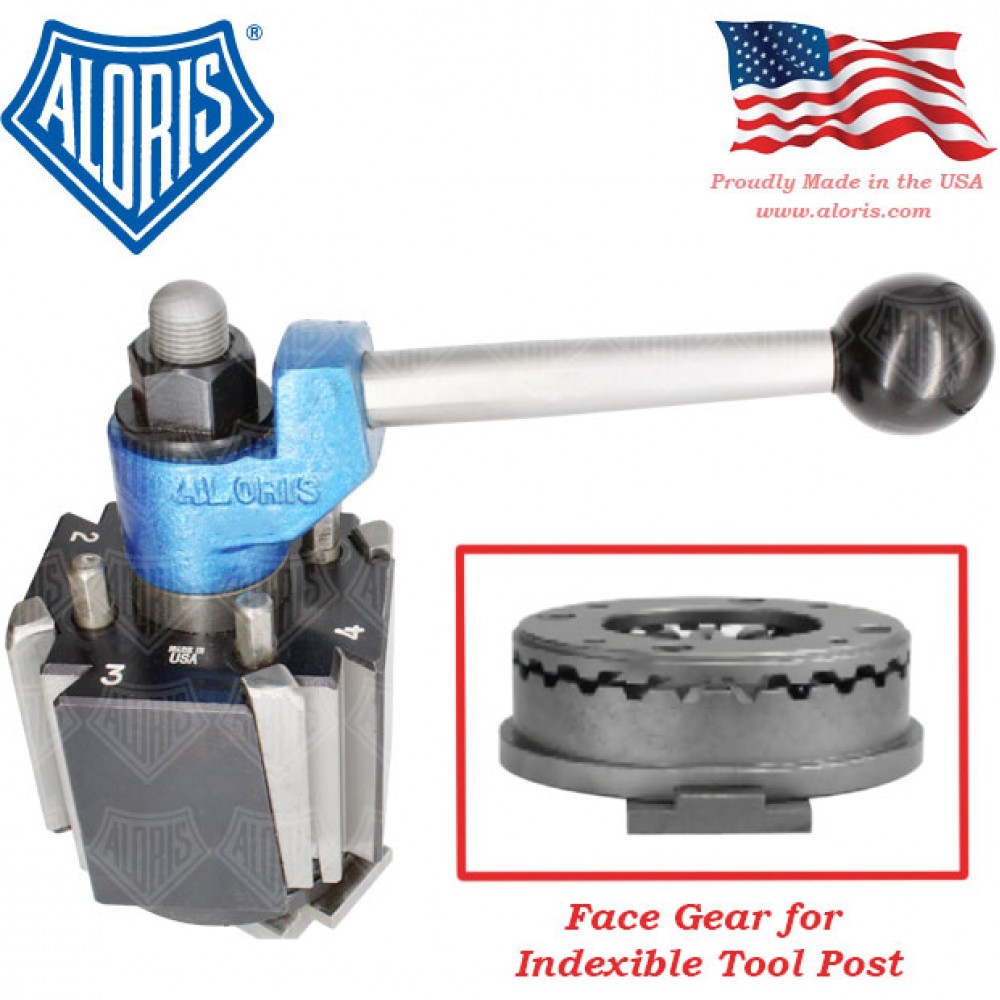

What is an Aloris Tool Post?
An Aloris tool post is a quick-change tool holder designed for use on lathes and other precision machining equipment. It was first introduced by the Aloris Tool Company in 1940 and has since become a staple in machine shops around the world.
The Aloris tool post consists of a base that attaches to the lathe’s cross-slide, as well as a series of interchangeable tool holders that can be quickly swapped out as needed. This allows machinists to switch between different cutting tools without having to remove and reposition each one individually.
Advantages of Using an Aloris Tool Post
There are several advantages to using an Aloris tool post over traditional tool holders. Here are just a few:
1. Increased Efficiency: By allowing machinists to quickly swap out different cutting tools, an Aloris tool post can greatly increase efficiency in the machining process.
2. Improved Accuracy: Because each tool holder is precisely machined, an Aloris tool post can provide more accurate results than traditional holders.
3. Better Tool Life: Because individual tools can be easily replaced, an Aloris tool post can help prolong the life of your cutting tools.
4. Versatility: With a wide range of available tool holders, an Aloris tool post can handle many different cutting tasks.
Disadvantages of Using an Aloris Tool Post
While there are many advantages to using an Aloris tool post, there are also some potential drawbacks to consider. Here are a few:
1. Cost: While an Aloris tool post can save time and improve accuracy, it can also be more expensive than traditional tool holders.
2. Learning Curve: Because the system is different from traditional tool holders, there may be a learning curve for machinists who are not familiar with the Aloris system.
3. Limited Compatibility: Depending on your lathe’s size and type, you may find that not all Aloris tool holders are compatible with your machine.
Types of Aloris Tool Holders
One of the most significant advantages of the Aloris tool post system is the wide range of available tool holders. Here are some of the most common types:
1. Turning and Facing Holders: These are general-purpose holders designed for turning and facing operations.
2. Boring Bar Holders: These holders are designed specifically for use with boring bars, which are used to enlarge existing holes or create new ones.
3. Knurling Holders: As the name suggests, these holders are designed for use with knurling tools, which create a pattern of small ridges on a workpiece’s surface.
4. Parting Blade Holders: These holders hold parting blades, which are specially designed cutting tools used to separate one piece from another.
5. Grooving Holders: These holders are designed for use with grooving tools, which create narrow channels in a workpiece’s surface.
How to Install an Aloris Tool Post
Installing an Aloris tool post is a relatively straightforward process. Here’s how to do it:
1. Remove any existing tool post from your lathe’s cross-slide.
2. Attach the base of the Aloris tool post to the cross-slide using bolts or screws.
3. Select the appropriate tool holder for your desired cutting task and insert it into the tool post.
4. Tighten the locking handle on the tool holder to secure it in place.
5. Adjust the height and angle of the tool holder as needed using the adjustment screws on the base.
6. Repeat steps 3-5 for each additional tool holder as needed.
Conclusion
As you can see, an Aloris tool post is an essential tool for any precision machinist. While it may be more expensive than traditional holders, its improved efficiency, accuracy, and versatility make it a worthwhile investment for many machine shops.
If you’re looking to upgrade your machining capabilities, consider adding an Aloris tool post to your equipment list. With its many advantages and available tool holders, you’ll wonder how you ever got by without one!
