When it comes to network cabling, one of the most important tools that you’ll need is a punch down tool. This handy device is used to terminate wires on patch panels, keystone jacks, and other types of networking equipment.
However, with so many different brands and models available on the market today, it can be quite challenging to choose the right punch down tool for your needs. That’s why we’ve put together this comprehensive guide to help you make an informed decision.
In this article, we’ll take a closer look at what a punch down tool is, how it works, and what features to look for when choosing the best one for your needs. So, without further ado, let’s get started!
What is a Punch Down Tool?

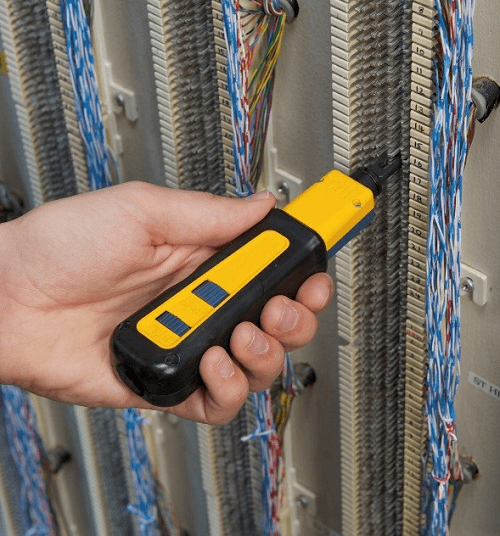

A punch down tool is a specialized hand tool that is used in telecommunications and network cabling installations. Its primary function is to terminate or connect wires onto terminal blocks or patch panels.
Punch down tools come in various designs, but they all share a similar operating principle. The tool has a sharp metal blade that is used to cut through the insulation of the wire and push it into the terminal block.
How Does a Punch Down Tool Work?
To use a punch down tool, you first need to strip off a small section of insulation from the wire using a wire stripper. Once you have exposed the bare wire, you insert it into the slot on the terminal block.
Next, you position the punch down tool over the wire and press down firmly. The sharp blade will cut through the insulation and push the wire into place on the terminal block.
What are Some Features to Look for When Choosing a Punch Down Tool?
Now that you know what a punch down tool is and how it works, let’s take a closer look at some of the key features that you should consider when choosing the best one for your needs.
Blade Type
One of the most important features to consider is the blade type. There are two main types of blades: 110 blades and 66 blades.
110 blades are used for terminating Cat5e and Cat6 cables, while 66 blades are used for terminating older-style telephone cables. Make sure that you choose a punch down tool with the appropriate blade type for your needs.
Handle Design
Another important feature to consider is the handle design. Look for a tool with an ergonomic design that feels comfortable in your hand and allows you to exert enough pressure to make clean, precise connections.
Some handles have a rubberized grip, which provides extra traction and reduces hand fatigue. Others have a spring-loaded mechanism that makes it easier to punch down wires quickly and efficiently.
Adjustable Impact Force
The impact force refers to the amount of pressure that the punch down tool applies to the wire. Some tools have an adjustable impact force, which allows you to customize the level of pressure based on your needs.
This feature is particularly useful if you’re working with delicate or brittle wires, as it can help prevent damage or breakage during installation.
Compatibility
Finally, make sure that the punch down tool you choose is compatible with the types of connectors or patch panels that you’ll be working with. Some tools are designed specifically for use with certain brands or models of equipment, so double-check before making your purchase.
Conclusion
A punch down tool is an essential piece of equipment for anyone who works in network cabling installations. With so many different options available on the market today, it can be difficult to choose the right one for your needs.
However, by considering factors such as blade type, handle design, impact force, and compatibility, you can narrow down your options and find a tool that meets your specific requirements.
We hope that this guide has been helpful in assisting you in selecting a punch down tool that is best suited for your needs.
