Are you tired of dealing with messy and unreliable cable connections? Do you want to ensure that your cables are securely connected for optimal performance? Look no further than the BNC crimping tool!
This essential tool is a must-have for anyone working with coaxial cables, particularly those in the audio and video industries. In this comprehensive guide, we’ll take a closer look at what makes the BNC crimping tool so valuable and offer some tips on how to use it effectively.
What is a BNC Crimping Tool?

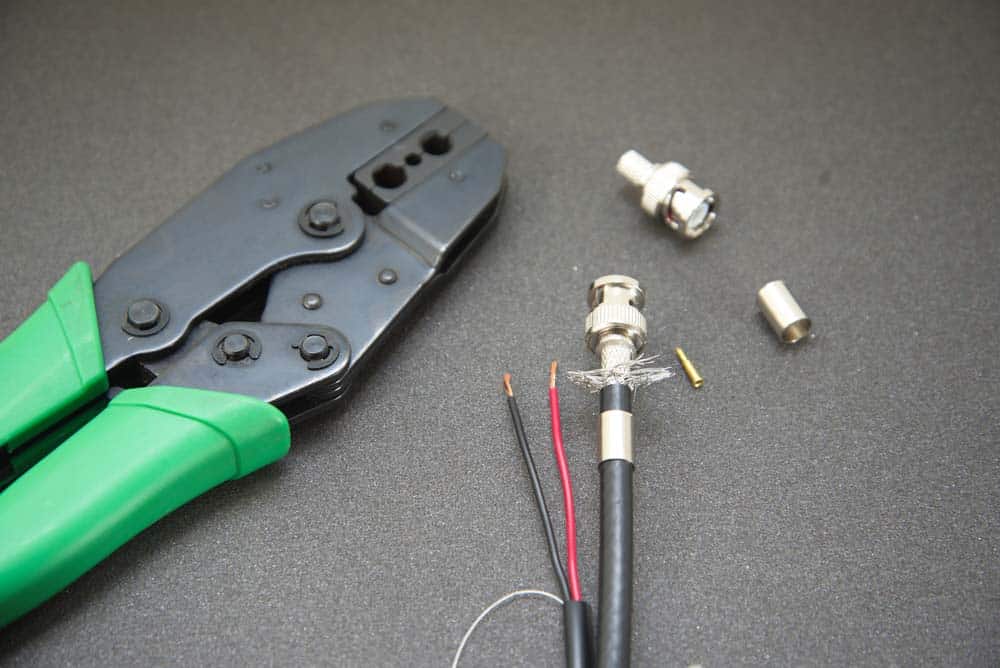

A BNC crimping tool is a specialized tool used to attach BNC connectors to the ends of coaxial cables. These connectors are commonly used in audio and video equipment, as well as in radio frequency applications.
The crimping process involves using the tool to press together the connector and cable, creating a secure and reliable connection. This ensures that signals can be transmitted without interference or loss of quality.
Why Use a BNC Crimping Tool?
There are several reasons why a BNC crimping tool is essential for anyone working with coaxial cables. Here are just a few:
1. Reliable Connections: When you’re working with high-quality audio or video equipment, you need to know that your connections are solid and dependable. Using a BNC crimping tool ensures that your cables are securely attached, minimizing the risk of signal loss or interference.
2. Easy to Use: While crimping may sound intimidating, using a BNC crimping tool is actually quite straightforward. With a little practice, you’ll be able to create professional-quality connections quickly and easily.
3. Cost-Effective: Investing in a quality BNC crimping tool can save you money in the long run by reducing the need for costly repairs or replacements due to faulty connections.
How to Use a BNC Crimping Tool
Now that we’ve established why a BNC crimping tool is so valuable, let’s take a closer look at how to use one effectively.
Step 1: Choose the Right Connector
Before you can start crimping, you need to choose the right connector for your cable. BNC connectors come in several different types and sizes, so it’s important to select the one that’s appropriate for your needs.
Step 2: Strip the Cable
Once you’ve selected your connector, you’ll need to strip the cable to expose the inner conductor and insulating material. This can be done using a specialized stripping tool or a sharp knife.
Step 3: Insert the Cable into the Connector
Next, insert the stripped end of the cable into the connector until it reaches the center pin. Make sure that the outer conductor is flush against the connector body.
Step 4: Crimp the Connector
Using your BNC crimping tool, apply pressure to the connector until it’s securely attached to the cable. Make sure that all parts of the connector are properly crimped, including the center pin and outer conductor.
Step 5: Test Your Connection
Finally, test your connection to ensure that it’s working properly. You should be able to transmit signals without any interference or loss of quality.
Conclusion
A BNC crimping tool is an essential tool for anyone working with coaxial cables. By ensuring reliable connections and reducing signal loss or interference, this tool can help you achieve optimal performance from your audio or video equipment.
If you’re in need of a BNC crimping tool, there are plenty of options available on the market today. Just be sure to choose a high-quality tool that’s appropriate for your needs and follow these simple steps for effective use.
