If you’re an automotive enthusiast, then you know how important it is to have the right tools in your toolbox. One tool that should definitely be a part of your collection is a bolt pattern tool. This handy device can save you time and money by helping you quickly determine the bolt pattern of any wheel or hub.
In this article, we’ll take a closer look at bolt pattern tools and explore why they’re so essential for anyone who works on cars.
What is a Bolt Pattern Tool?
A bolt pattern tool is a measuring tool that helps you determine the bolt pattern of a wheel or hub. The bolt pattern refers to the number of bolts on the wheel or hub and the spacing between them.
For example, if you have a 5-lug wheel with a bolt spacing of 100mm, then the bolt pattern would be written as “5×100.” This information is crucial when you’re looking to replace wheels or hubs on your vehicle.
Why Do You Need a Bolt Pattern Tool?
The primary reason why you need a bolt pattern tool is that it saves you time and money. Instead of guessing what type of wheels or hubs will fit your vehicle, you can use the tool to determine the exact specifications.
This means that you won’t waste money on parts that don’t fit properly, and you won’t spend hours trying to figure out which parts are compatible with your vehicle.
Another benefit of having a bolt pattern tool is that it allows you to customize your wheels. If you want to upgrade your rims, for example, you can use the tool to find wheels with the same bolt pattern as your current set.
This opens up a world of possibilities when it comes to customizing your ride. You can choose from a wide range of aftermarket wheels, knowing that they’ll fit perfectly on your vehicle.
How Do Bolt Pattern Tools Work?
Bolt pattern tools are incredibly simple to use. They consist of a circular plate with multiple holes drilled into it. The holes are arranged in different configurations to match the most common bolt patterns.
To use the tool, you simply place it over the hub or wheel and align the holes with the bolts. You then count the number of bolts and measure the diameter of the circle formed by the outer edges of the bolts.
Once you have this information, you can use it to determine the bolt pattern and find compatible parts for your vehicle.

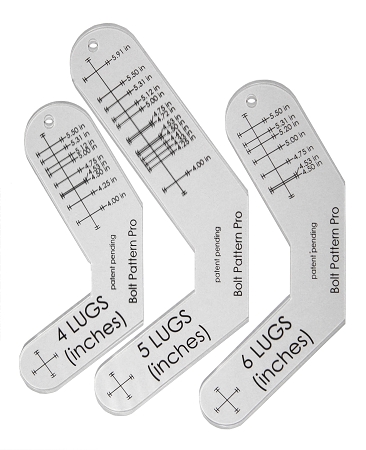

Types of Bolt Pattern Tools
There are two main types of bolt pattern tools: caliper-style and plate-style.
Caliper-style tools work like a standard caliper. You place them over the hub or wheel and adjust the jaws until they’re flush against the bolts. You then read off the measurement from the scale on the side of the tool.
Plate-style tools are simpler in design but just as effective. They consist of a circular plate with multiple holes drilled into it, as we mentioned earlier. You simply place the plate over the hub or wheel and align the holes with the bolts to determine the bolt pattern.
Both types of tools are easy to use and provide accurate measurements. The choice between them comes down to personal preference and ease of use.
Tips for Using a Bolt Pattern Tool
If you’re new to using a bolt pattern tool, here are some tips that will help you get started:
1. Make sure that your vehicle is level before measuring. This will ensure that your measurements are accurate.
2. Clean off any dirt or debris from the hub or wheel before measuring. This will make it easier to align the tool correctly.
3. Use a pen or marker to mark each bolt as you measure it. This will help you keep track of which ones you’ve already counted.
4. Measure in millimeters rather than inches, as this is more precise.
5. Double-check your measurements before making any purchases. One small mistake can lead to a costly error.
Conclusion
If you’re serious about working on cars, then a bolt pattern tool is an essential piece of equipment. It’s simple to use, saves you time and money, and opens up a world of possibilities when it comes to customizing your ride.
So why not add one to your toolbox today? You won’t regret it!
