If you’re a boat owner, you know how important it is to maintain your vessel. One of the key components of a boat’s steering system is the gimbal bearing. This small but mighty piece helps to keep your boat’s outdrive in place and allows for smooth steering. Over time, however, this bearing can wear down and require replacement. But what if you don’t have access to special tools or equipment? Don’t worry – we’ve got you covered. In this guide, we’ll show you how to remove your gimbal bearing without any special tools.
What is a Gimbal Bearing?
Before we dive into the removal process, let’s take a quick look at what a gimbal bearing is and why it’s important. Essentially, a gimbal bearing is a type of ball bearing that sits inside the gimbal housing. It allows the driveshaft to rotate smoothly while also supporting the weight of the outdrive. Without a functioning gimbal bearing, your boat’s steering system won’t work properly and could even cause damage to other parts of your vessel.
Why Remove Your Gimbal Bearing Without Tools?

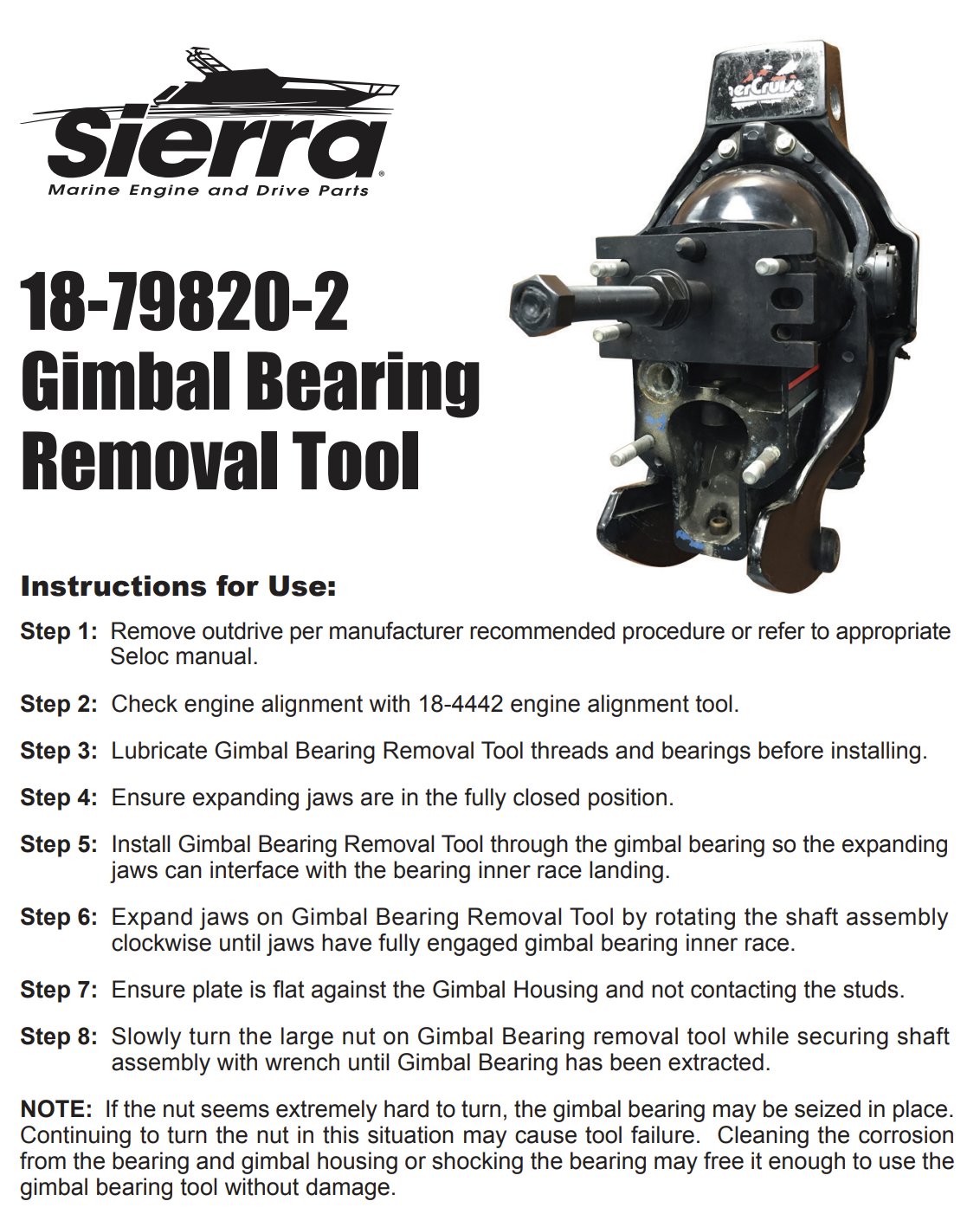

Traditionally, removing a gimbal bearing requires specialized tools such as pullers or presses. However, not everyone has access to these tools or wants to invest in them for a one-time job. Additionally, some boaters may be in remote locations without easy access to marine repair shops or tool rental facilities. Whatever your reason for wanting to remove your gimbal bearing without tools, rest assured that it can be done with just a few simple steps.
Step 1: Gather Your Materials
While you won’t need any specialized tools, there are still a few materials you’ll need for this job:
– Grease
– A hammer
– A block of wood
– A socket wrench
– A large socket (at least 1 inch in diameter)
Step 2: Remove the Outdrive
Before you can access the gimbal bearing, you’ll need to remove the outdrive from your boat. This will require disconnecting a few bolts and cables, so be sure to refer to your owner’s manual for specific instructions. Once the outdrive is removed, place it on a clean, flat surface.
Step 3: Locate the Gimbal Bearing
The gimbal bearing is located inside the gimbal housing, which is attached to the transom assembly. You should be able to see it by looking through the u-joint bellows on the back of the outdrive. The gimbal housing may have a metal cover that needs to be removed before you can access the bearing.
Step 4: Grease the Area
Using your grease gun, apply a generous amount of marine grease around the gimbal bearing area. This will help lubricate everything and make it easier to remove the bearing.
Step 5: Use a Block of Wood and Hammer
Place a block of wood against one side of the gimbal housing, near where the bearing is located. Using your hammer, gently tap the other side of the housing until the bearing starts to move. Be careful not to hit too hard or you could damage other parts of the steering system.
Step 6: Remove the Bearing
Once the bearing has started to move, continue tapping with your hammer until it comes out completely. You may need to rotate the driveshaft slightly to get it out all the way. If necessary, use your socket wrench and large socket to push it out further.
Step 7: Clean Everything Up
Once you’ve removed the old gimbal bearing, use a clean rag or paper towel to wipe away any excess grease or debris. Inspect the area for any signs of damage or wear that may need attention before installing a new bearing.
Step 8: Install the New Bearing
Replacing the gimbal bearing is essentially the reverse of the removal process. Apply a generous amount of grease to the area and slide the new bearing into place. Use your socket wrench and large socket to gently push it all the way in. Be sure to double-check that everything is properly aligned before reattaching the outdrive.
Conclusion
Removing a gimbal bearing without tools may seem like a daunting task, but with a little patience and elbow grease, it can be done. By following these simple steps, you can save time and money by doing this job yourself. As always, be sure to refer to your owner’s manual for specific instructions and safety precautions.
