If you’re a diesel engine owner, you understand the importance of keeping your vehicle running smoothly. One of the most common issues that can arise in diesel engines is a malfunctioning injector cup. The injector cup is responsible for holding the fuel injector in place and ensuring proper fuel delivery. When this component fails, it can cause major engine damage.
Luckily, removing a faulty injector cup doesn’t have to be a daunting task. With the right tools and knowledge, you can easily remove and replace your injector cups without breaking a sweat. In this article, we’ll provide you with all the information you need to know about injector cup removal tools.
What is an Injector Cup Removal Tool?
An injector cup removal tool is a specialized tool designed to remove stubborn injector cups from diesel engines. These tools come in different shapes and sizes depending on the type of diesel engine you’re working on. However, they all serve the same purpose – to make removing injector cups easier and less time-consuming.
When Do You Need an Injector Cup Removal Tool?
If you’ve noticed that your diesel engine is running rough or has decreased power output, it may be due to a malfunctioning injector cup. This component can crack or become loose over time, causing fuel leaks and other issues. If you suspect that your injector cups are causing problems, it’s crucial to address them as soon as possible.
Using an injector cup removal tool is necessary when attempting to remove damaged or stuck cups. Without this tool, removing the cups can be challenging and time-consuming. Using improper methods can lead to further damage to your engine.
How Does an Injector Cup Removal Tool Work?
The process of using an injector cup removal tool varies depending on the type of tool being used. However, most tools work by applying pressure to the inside of the cup while simultaneously pulling it outwards from the engine.
The tool is inserted into the injector cup, and pressure is then applied to the inside of the cup. This pressure helps to loosen the cup from its position in the engine block. Once the cup is loose, it can be pulled out using a pair of pliers or other appropriate tools.
Types of Injector Cup Removal Tools
There are several different types of injector cup removal tools available on the market. Each type is designed to work with specific diesel engines and injector cups. Here are some of the most common types of injector cup removal tools:
1. Slide Hammer Type
The slide hammer type injector cup removal tool is one of the most common tools used for this task. It works by inserting a threaded rod into the injector cup and attaching a slide hammer to it. The slide hammer is then struck, which applies force to the cup and pulls it out of the engine block.
2. Hydraulic Type
The hydraulic type injector cup removal tool uses hydraulic pressure to remove stubborn cups. This type of tool requires an external hydraulic pump to apply pressure to the inside of the cup, which loosens it from its position in the engine block.
3. Pneumatic Type
The pneumatic type injector cup removal tool uses compressed air to create pressure inside the injector cup. This pressure helps to loosen the cup from its position in the engine block, allowing it to be easily removed.
4. Standard Socket Type
The standard socket type injector cup removal tool is typically used on older diesel engines that have larger-sized cups. This tool works similarly to a regular socket wrench but has a specially designed head that fits over the top of the injector cup.

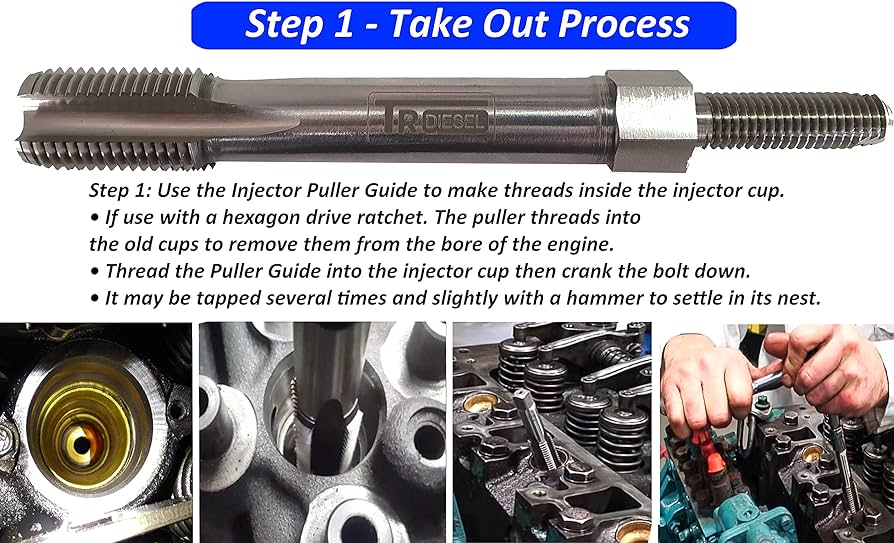

How to Use an Injector Cup Removal Tool
Using an injector cup removal tool requires some basic knowledge about diesel engines and their components. Follow these steps to use an injector cup removal tool correctly:
Step 1: Gather Necessary Tools
Before attempting to remove an injector cup, make sure you have all the necessary tools. This includes the appropriate injector cup removal tool, pliers, and any other tools needed to access the cups.
Step 2: Remove Injector
To access the injector cups, you’ll need to remove the fuel injector from the engine block. This can be done by removing any bolts or screws that are holding it in place.
Step 3: Insert Tool
Insert the injector cup removal tool into the damaged cup. Be sure to use the correct size and type of tool for your engine.
Step 4: Apply Pressure
Apply pressure to the inside of the cup using the injector cup removal tool. This pressure should help loosen the cup from its position in the engine block.
Step 5: Remove Cup
Once the cup is loose, use a pair of pliers or other appropriate tools to pull it out of the engine block.
Step 6: Install New Cup
After removing the old cup, install a new one in its place. Be sure to use a high-quality replacement part and follow all manufacturer instructions for installation.
In Conclusion
Removing an injector cup from a diesel engine can be a challenging task, but with an injector cup removal tool, it becomes much easier. Using the right tool for your engine can save you time and prevent further damage to your engine’s components.
If you’re unsure about how to use an injector cup removal tool or don’t feel comfortable performing this task yourself, it’s best to seek professional help. A qualified mechanic can help you diagnose and fix any issues with your diesel engine.
