Are you struggling with the extraction of Molex connectors? Do you want a safe and easy solution to extract those tiny pins without damaging them or the wire? If yes, then you have come to the right place. In this article, we will introduce you to the Molex 11-03-0043 Extraction Tool, an essential tool for anyone who is dealing with Molex connectors.
What is a Molex Connector?
Before we dive into the details of the extraction tool, let’s first understand what a Molex connector is. A Molex connector is a type of electrical connector that is commonly used in computers, telecommunication equipment, and other electronic devices. It consists of two parts, a male part, and a female part, which fit together to establish an electrical connection between wires.
Why Do You Need an Extraction Tool?
Molex connectors are small and delicate, which makes it challenging to extract them without causing damage. Trying to remove them manually can bend or break their pins or damage the wire insulation. An extraction tool is designed specifically for this purpose, allowing you to extract the connectors safely and easily without damaging any components.

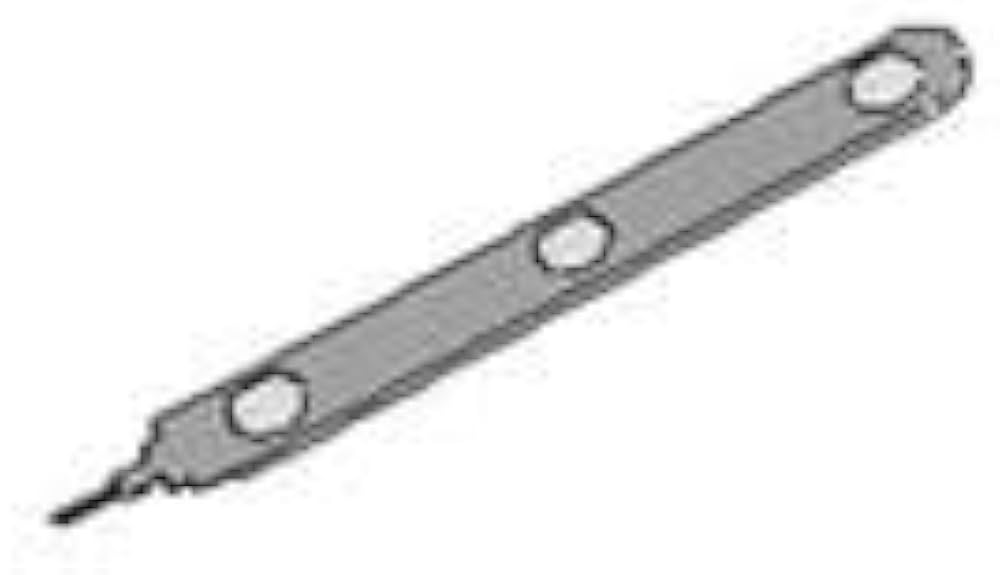

Introducing the Molex 11-03-0043 Extraction Tool
The Molex 11-03-0043 Extraction Tool is a specialized tool that helps you remove Molex connectors from their housing without damaging any components. It has a simple design that allows even novices to use it effectively. The tool consists of two parts – a metal frame with two arms and a plastic handle. The arms have hooks at their tips that fit perfectly into the notches on each side of the connector’s housing.
How to Use the Molex 11-03-0043 Extraction Tool
Using the Molex 11-03-0043 Extraction Tool is straightforward. Here are the steps to follow:
Step 1: Insert the tool into the connector’s housing, making sure that the hooks on the arms fit perfectly into the notches on each side of the housing.
Step 2: Press down on the plastic handle firmly, until you hear a click sound. This indicates that the hooks have locked onto the connector pins.
Step 3: Pull gently on the tool to extract the connector from its housing. If you encounter resistance, wiggle the tool slightly while pulling.
Step 4: Once you have removed the connector from its housing, release the tool by pressing down on the plastic handle again.
Tips for Using Molex 11-03-0043 Extraction Tool
Here are some tips to help you use this extraction tool effectively:
1. Aligning is Key: Make sure that you align the hooks on the arms with the notches on each side of the connector’s housing. This will ensure that they lock onto the pins correctly.
2. Don’t Rush: Take your time when using this tool, as rushing can cause damage to both the connector and wire.
3. Apply Adequate Pressure: Apply enough pressure when pressing down on the plastic handle to ensure that it locks onto all pins properly.
4. Wiggle if Stuck: If you encounter resistance while pulling out a connector, wiggle it slightly while pulling to loosen any tightness.
5. Practice Makes Perfect: Practice using this tool with a few connectors first before using it on critical components.
Conclusion
The Molex 11-03-0043 Extraction Tool is an essential tool for anyone who deals with Molex connectors regularly. It provides a safe and easy solution to extract those tiny pins without causing any damage or harm to any component. Remember to align correctly, apply adequate pressure, and practice before using it on important components. With this tool, you can say goodbye to the frustration of manual extraction and enjoy a smooth and easy process.
