If you are an engine builder, you know how important it is to have the right tools for the job. One of the most critical tasks in building a high-performance engine is installing the piston rings correctly. Piston ring squaring tool is a must-have tool that can make your life easier and help you achieve better results.
What is a Piston Ring Squaring Tool?

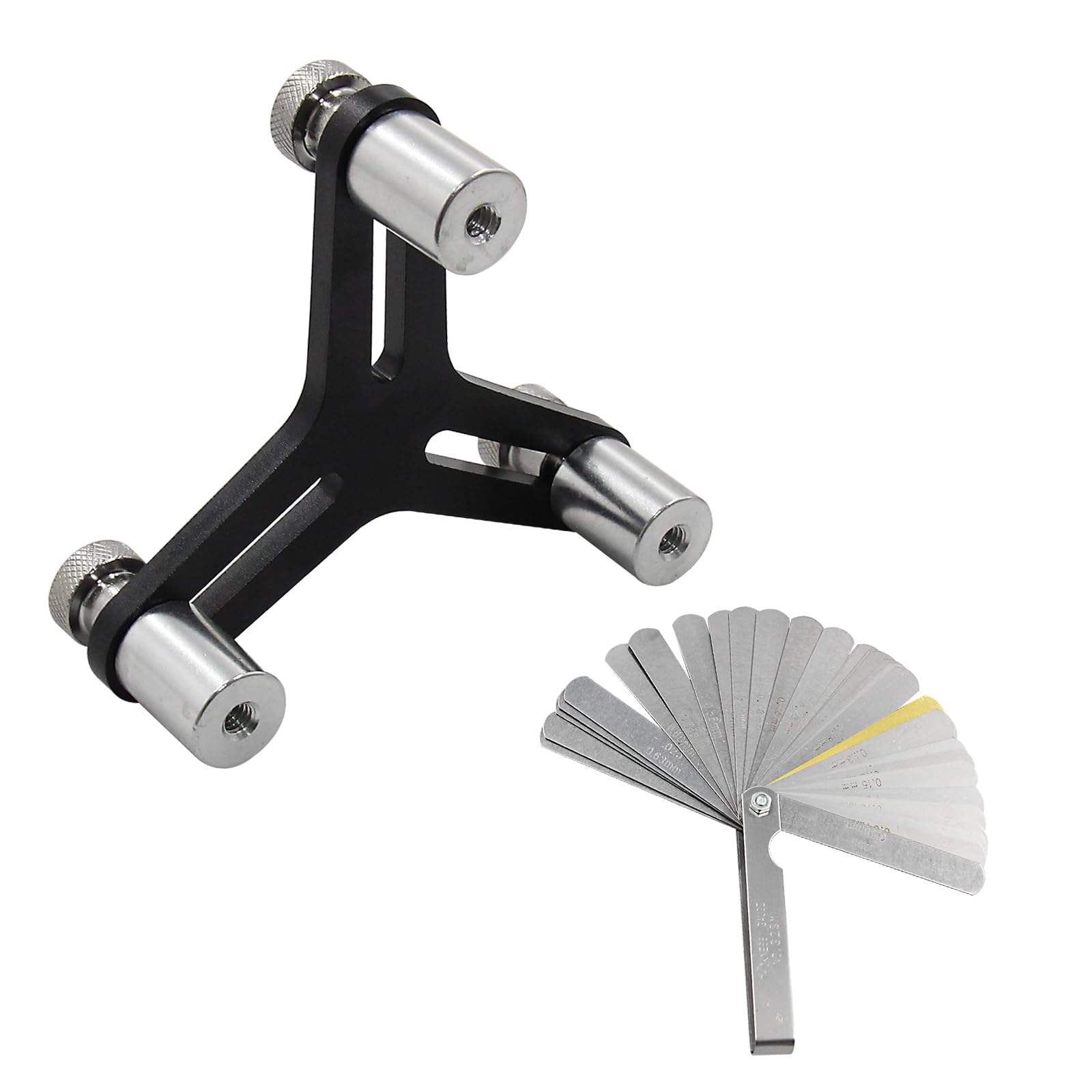

A piston ring squaring tool is a device used to square the piston rings in the bore before final assembly. It ensures that the rings are installed at the correct angle and orientation, ensuring optimum performance and longevity of the engine.
Why Do You Need a Piston Ring Squaring Tool?
Using a piston ring squaring tool has several benefits that can save you time and money in the long run:
1. Better Performance: Properly squared piston rings reduce blow-by and oil consumption, improving overall engine performance.
2. Increased Longevity: Square piston rings minimize wear on cylinder walls, increasing engine life.
3. Consistent Results: Using a piston ring squaring tool ensures consistent results every time, reducing errors and saving time.
How to Use a Piston Ring Squaring Tool?
Using a piston ring squaring tool is simple and straightforward. Here’s how to do it:
Step 1: Install the pistons in your engine block without any rings.
Step 2: Insert the piston ring into the cylinder bore.
Step 3: Place the piston ring squaring tool over the top of the bore.
Step 4: Rotate the tool until it aligns with the ring end gap.
Step 5: Adjust the tool until it squares up with the cylinder bore.
Step 6: Tighten down all bolts until snug.
Step 7: Remove the tool and install your rings as normal.
Best Piston Ring Squaring Tools
There are several piston ring squaring tools available in the market, but not all of them are created equal. Here are some of the best piston ring squaring tools that you can trust:
1. Proform 66789 Piston Ring Squaring Tool
The Proform 66789 is a high-quality piston ring squaring tool that is compatible with most engine blocks. It features a durable aluminum construction and comes with an easy-to-read degree wheel for precise angle adjustments.
2. COMP Cams 5606 Piston Ring Squaring Tool
The COMP Cams 5606 is another excellent option for engine builders. It also features a degree wheel for precise angle adjustments and is made of high-quality aluminum for durability.
3. Moroso 62395 Piston Ring Squaring Tool
If you’re looking for a more affordable option, the Moroso 62395 is a great choice. It’s made of steel and features a simple design that makes it easy to use.
Conclusion
In conclusion, using a piston ring squaring tool is essential for any engine builder who wants to achieve optimum performance and longevity from their engines. With the right tool and technique, you can ensure that your piston rings are installed correctly every time, reducing blow-by, oil consumption, and wear on cylinder walls. Don’t hesitate to invest in one of the best piston ring squaring tools mentioned above to make your engine building experience easier and more efficient.
